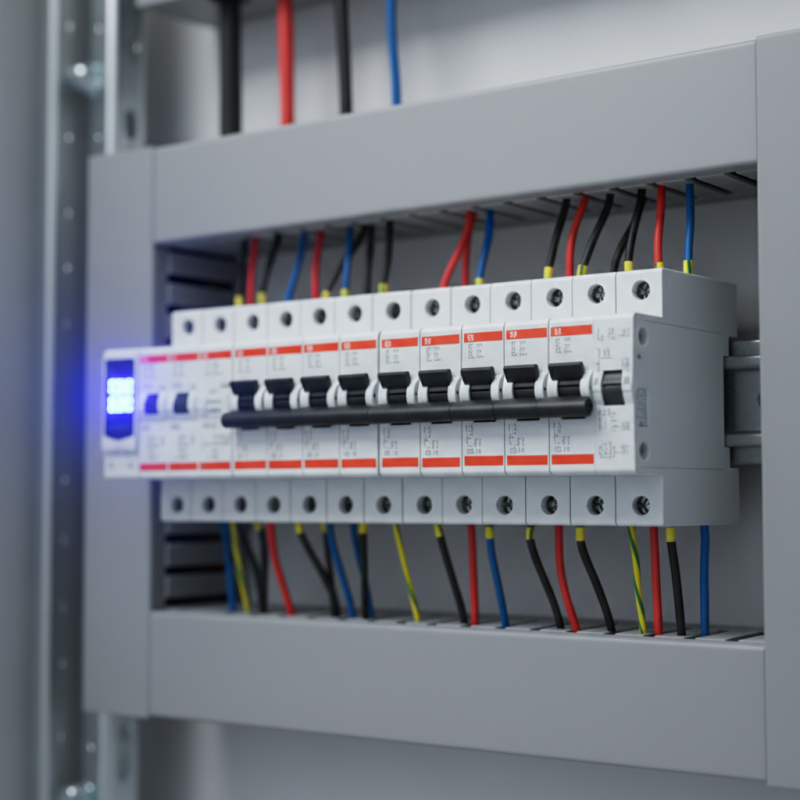

What is a Miniature Circuit Breaker and How Does It Work?
In the realm of electrical safety, the Miniature Circuit Breaker (MCB) stands out as a crucial device. Renowned expert Dr. Alex Turner, a leader in circuit protection technology, once stated, “Miniature Circuit Breakers are the first line of defense in modern electrical systems.” This highlights the importance of understanding how MCBs function to protect our homes and businesses.
Miniature Circuit Breakers automatically switch off in case of overloads or short circuits. They prevent potential damage to wiring systems and appliances. Their compact design allows for easy installation in electrical panels, adding to their practicality. However, there’s a need to understand their limitations as well. Not all MCBs are the same; choosing the right type and rating is essential.
Many people overlook the nuances of their operation. Inappropriate use may lead to insufficient protection. For instance, incorrectly sized MCBs can fail during critical times. It’s vital to educate ourselves on what MCBs can and cannot do. With some reflection, we can ensure our electrical systems remain safe and reliable.
What is a Miniature Circuit Breaker (MCB)?
A Miniature Circuit Breaker (MCB) is an essential electrical component. It serves to protect electrical circuits from overloads and short circuits. With rapid technological advancements, MCBs have become more refined, enhancing safety in homes and industries. According to statistics, MCBs can reduce electrical fires by up to 80%. This significant decrease highlights their importance in modern electrical systems.
MCBs work by automatically disconnecting the electrical circuit when faults occur. They operate on two mechanisms: thermal and magnetic. The thermal mechanism responds to overloads, while the magnetic mechanism reacts to short circuits. In some reports, it is noted that over 90% of electrical failures stem from improperly sized circuit breakers. Hence, choosing the correct MCB type is crucial for safety and efficiency.
Despite their advantages, MCBs are not flawless. Some users report nuisance tripping, leading to frustrations. The challenge is often traceable to poor installation or inadequate sizing. Industry experts recommend periodic assessments of MCB settings to ensure optimal performance. Ignoring these checks can lead to greater risks in electrical safety. Regular maintenance can help mitigate such issues and ensure reliability in protective measures.
What is a Miniature Circuit Breaker and How Does It Work?
| Dimension | Description |
| Definition | A miniature circuit breaker (MCB) is an electromechanical device that automatically switches off electrical circuits during overload or short-circuit conditions. |
| Purpose | To protect electrical installations and devices from current overloads and faults. |
| Key Feature | MCBs can be reset manually after tripping, unlike fuses which need replacement. |
| Operation | Uses a bimetallic strip and electromagnet mechanism to detect excess current. |
| Types | Types include Type B (general applications), Type C (equipment with moderate inrush currents), and Type D (high inrush currents). |
| Applications | Commonly used in residential, commercial, and industrial electrical systems. |
| Benefits | Provides reliable protection, easy reset capability, and space-saving designs. |
Key Components of Miniature Circuit Breakers
Miniature Circuit Breakers (MCBs) are essential devices in electrical systems. They primarily prevent overloads and short circuits, protecting electrical circuits and appliances. Understanding their key components can help demystify their operation.
The heart of an MCB is the bimetallic strip. When current flows through, this strip heats up. If the current exceeds a certain threshold, the strip bends, triggering the switch to open. Another vital component is the electromagnetic coil. In a short circuit, it responds instantly, creating a magnetic field that pulls the switch open. Both mechanisms work together to ensure safety.
In addition, the housing of the MCB is crucial. It protects internal components and ensures safe operation. The reset button allows users to restore functionality once the issue has been resolved. Occasionally, users may neglect to check or reset the MCB after a trip. This could lead to unwanted outages, highlighting the importance of regular maintenance and awareness.
How MCBs Operate: Mechanisms of Action
Miniature Circuit Breakers (MCBs) play a crucial role in electrical safety. They automatically disconnect the circuit when they detect faults, preventing potential hazards. The mechanism of an MCB involves different components. These include a bimetallic strip and an electromagnet. The bimetallic strip bends when it heats up due to increased current. This bending triggers the circuit to break.
MCBs operate based on two key actions. In overload situations, the heat causes the strip to bend slowly. But in short circuits, the current surge activates an electromagnet. This reaction is almost immediate. The electromagnet pulls the lever down, which opens the circuit. Both actions provide protection in different scenarios.
While MCBs are effective, they are not infallible. Overloading can still occur if the correct rating isn’t chosen. Users might overlook signs of wear. Routine checks are essential. MCBs can trip unexpectedly, causing inconvenience. Maintaining them reduces risks, but it requires diligence. Regular inspections should not be neglected. Every detail counts in ensuring electrical safety.
Industry Standards and Ratings for MCBs
Miniature Circuit Breakers (MCBs) are critical for electrical safety. They provide automatic protection from overloads and short circuits. Understanding MCB ratings and industry standards is essential for proper usage.
Typically, MCBs are rated based on their current-carrying capacity. This rating determines how much current the MCB can handle before tripping. Common ratings include 6A, 10A, 16A, 20A, and 32A. These values are vital for matching the MCB to the circuit's specific load requirements.
Industry standards, such as IEC 60898, govern MCB design and performance. Compliance with these standards ensures reliability and safety. MCBs must undergo rigorous testing, covering aspects like thermal and magnetic tripping. However, many users overlook these specifications.
Misinterpretation can lead to inadequate circuit protection. In real-world applications, incorrect ratings often cause equipment damage or hazards. Each installation scenario is unique, and one size does not fit all. It's crucial to evaluate the actual load and select MCBs accordingly. This attention to detail enhances safety and reliability.
Common Applications and Benefits of MCBs in Electrical Systems
Miniature Circuit Breakers (MCBs) are essential components in modern electrical systems. They protect circuits from overloads and short circuits. By automatically disconnecting the circuit, MCBs prevent damage to appliances and reduce fire risks. Their compact size makes them suitable for a variety of applications, from residential to industrial settings.
MCBs are commonly used in homes to safeguard lighting and power circuits. They can also be found in commercial buildings, protecting larger systems. In factories, MCBs ensure machinery and production lines run safely. The benefits are clear: increased safety, reduced downtime, and lower maintenance costs. However, improper installation or failure to replace faulty units can lead to risky situations. Users should regularly test and inspect MCBs to ensure they function correctly.
While MCBs provide reliable protection, they are not infallible. An older unit may not respond as effectively, leaving systems vulnerable. Awareness and understanding are vital. Regular training and updates on electrical safety can prevent potential issues. Maintaining an inventory of replacement units is wise for anyone relying heavily on electrical systems.
Miniature Circuit Breaker (MCB) Applications and Benefits
